The Merason DAC1 is simple, high-end DAC based around the Burr Brown PCM1794A DAC chips - a popular choice for high end digital conversion - and uses a discrete, balanced signal path, Class A buffering, and components chosen by hand based on listening tests rather than cold hard specifications.

Digital inputs come in the form of optical, coaxial, USB, and balanced AES/EBU inputs.
Unbalanced RCA outputs provide a 1.5v output, and fully balanced XLR outputs provide 3v output, allowing connection to suitably equipped amplifiers.

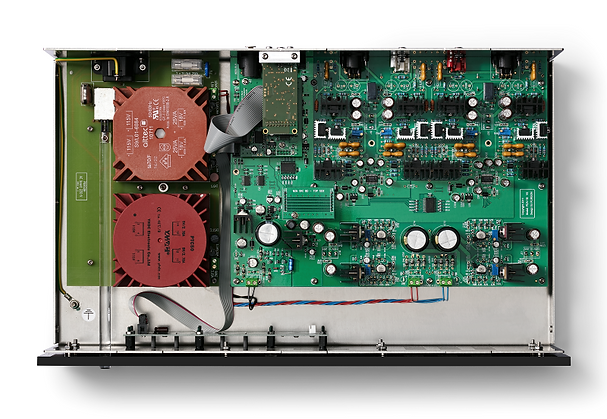

The back panel of the Merason DAC1 is a simple affair, as the magic happens inside...

-
dual Burr Brown PCM1794A DAC chips
-
Class A buffering circuitry
-
RCA unbalanced outputs [1.5v output]
-
XLR balanced outputs [3v output]
-
optical digital input [up to 24bit/192kHz]
-
coaxial digital input [up to 24bit/192kHz]
-
USB digital input [up to 24bit/96kHz]
-
AES/EBU digital input [up to 24bit/192kHz]
-
H100mm x W450mm x D290mm
-
2 year warranty
-
£4195 black or white acrylic finish
-
£6595 chromium-nickel steel finish
